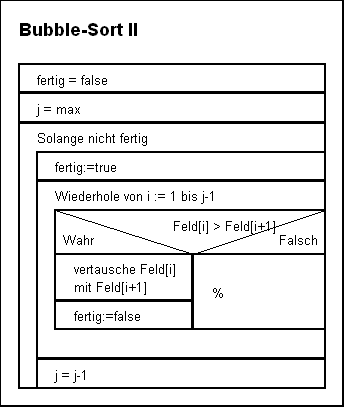

Example of a Nassi–Shneiderman diagram
  1. Structorizer Download
  2. Structorizer Ubuntu
  3. Structorizer Download
  4. Scratch

A Nassi–Shneiderman diagram (NSD) in computer programming is a graphical design representation for structured programming.[1] This type of diagram was developed in 1972 by Isaac Nassi and Ben Shneiderman who were both graduate students at Stony Brook University.[2] These diagrams are also called structograms,[3] as they show a program's structures.

Overview[edit]

Following a top-down design, the problem at hand is reduced into smaller and smaller subproblems, until only simple statements and control flow constructs remain. Nassi–Shneiderman diagrams reflect this top-down decomposition in a straightforward way, using nested boxes to represent subproblems. Consistent with the philosophy of structured programming, Nassi–Shneiderman diagrams have no representation for a GOTO statement.

Nassi–Shneiderman diagrams are only rarely used for formal programming. Their abstraction level is close to structured program code and modifications require the whole diagram to be redrawn, but graphic editors removed that limitation. They clarify algorithms and high-level designs, which make them useful in teaching. They were included in Microsoft Visio and dozens of other software tools, such as the German EasyCode.

In Germany, Nassi–Shneiderman diagrams were standardised in 1985 as DIN 66261.[4] They are still used in German introductions to programming, for example Böttcher and Kneißl's introduction to C,[5] Baeumle-Courth and Schmidt's introduction to C[6] and Kirch's introduction to C#.[7]

Nassi–Shneiderman diagrams can also be used in technical writing.[8]

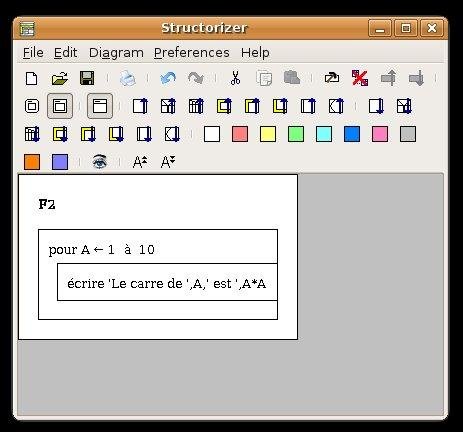

Message part 1 (text/plain, inline) retitle 500545 'RFP: structorizer - tool to create Nassi-Schneiderman Diagrams (NSD)' thanks After looking into the source more intensely I found out that it is quite hard to maintain as a clean deb package. Structorizer is an editor to create Nassi–Shneiderman diagrams. You can only edit one program or subprogram per time, but if you stick to the right syntax (which you can define in the options), you can export your structogram to various programming languages (Pascal/Delphi, Oberon, StrukTeX, Perl, KSH, BASH, C, Java).

Structorizer

Diagrams[edit]

Process blocks: the process block represents the simplest of steps and requires no analysis. When a process block is encountered, the action inside the block is performed and we move onto the next block.

Process blocks

Branching blocks: there are two types of branching blocks. First is the simple True/False or Yes/No branching block which offers the program two paths to take depending on whether or not a condition has been fulfilled. These blocks can be used as a looping procedure stopping the program from continuing until a condition has been fulfilled.

True/False branching blocks

The second type of branching block is a multiple branching block. This block is used when a select case is needed in a program. The block usually contains a question or select case. The block provides the program with an array of choices and is often used in conjunction with sub process blocks to save space.

Multiple branching blocks

Testing loops: this block allows the program to loop one or a set of processes until a particular condition is fulfilled. The process blocks covered by each loop are subset with a side-bar extending out from the condition.

Structorizer Download

StructorizerStructorizer

There are two main types of testing loops, test first and test last blocks. The only difference between the two is the order in which the steps involved are completed.In the test first situation, when the program encounters the block it tests to see if the condition is fulfilled, then, if it is not completes the process blocks and then loops back. The test is performed again and, if the condition is still unfulfilled, it processes again. If at any stage the condition is fulfilled the program skips the process blocks and continues onto the next block.

Left 4 Dead 2 Your own custom apocalypse Discover and download new maps, Add-ons, Mutations and more! Want to try your hand at modding or want to upload your mod to Steam? Set in the zombie apocalypse, Left 4 Dead 2 (L4D2) is the highly anticipated sequel to the award-winning Left 4 Dead, the #1 co-op game of 2008. This co-operative action horror FPS takes you and your friends through the cities, swamps and cemeteries of the Deep South, from Savannah to New Orleans. A quick little model replacement that I did for the Hunter in Left 4 Dead 2. Now yes, I know that there is already a Hunter model for the Hunter but this model is from Resident Evil Outbreak and the other one is from Resident Evil Remake which are two e. Dead Title: Left 4 Dead 2 Genre: Action Developer: Valve Publisher: Valve Release Date: Nov 16, 2009 Languages: Danish, Dutch, English, Finnish, French, German, Italian. Steam Workshop: Left 4 Dead 2. Sonic and his pals become trapped in a zombie apocalypse and must escape. Just about everyone is here and ready for this new adventure. Sonic, Tails, Knuckles, Amy, Cream, Rouge, Shadow, Omega, Dr.

Test first loop block

The test last block is simply reversed, the process blocks are completed before the test is performed. The test last loop allows for the process blocks to be performed at least once before the first test.

Test last loop block

Concurrent execution can be drawn like this:

parallel processing

Structorizer Ubuntu

See also[edit]

Publications[edit]

  • Nassi, I.; Shneiderman, B.: Flowchart techniques for structured programming, SIGPLAN Notices XII, August 1973.

References[edit]

  1. ^Hans-Georg Fill (2009). Visualisation for Semantic Information Systems. p.32
  2. ^A short history of structured flowcharts (Nassi-Shneiderman Diagrams). Webdoc draft: May 27, 2003. (Source)
  3. ^Rolf Isermann (1988). Automatic Control: Selected papers from the triennial world congress of the International Federation of Automatic Control : Munich, Federal Republic of Germany, 27–31 July 1987, Volume 10;Volume 14. p.89
  4. ^Deutsches Institut für Normung e. V. (DIN): DIN 66261: Informationsverarbeitung; Sinnbilder für Struktogramme nach Nassi-Shneiderman.
  5. ^Böttcher, Axel; Kneißl, Franz: Informatik für Ingenieure: Grundlagen und Programmierung in C. 3rd edition. München: Oldenbourg, 2012. ISBN978-3-486-70527-0. See especially Chapter 10: 'Kontrollstrukturen' (control flow).
  6. ^Baeumle-Courth, Peter; Schmidt, Torsten: Praktische Einführung in C. München: Oldenbourg, 2012. ISBN978-3-486-70799-1. See especially Chapter 6: 'Kontrollstrukturen' (control flow).
  7. ^Kirch, Ulla: C# lernen und professionell anwenden. Heidelberg: mitp, 2009. ISBN978-3-8266-5915-7. See especially Chapter 5: 'Schleifen und Verzweigungen' (loops and branches).
  8. ^Weiss, Edmond H.: 'Visualizing a Procedure with Nassi-Schneiderman Charts', Journal of Technical Writing and Communication, Vol. 20, Nr. 3 (1990): 237-54.
